[Series FD01/FD02] Ultra-Thin DIP Rotary Switches
08.02.2024

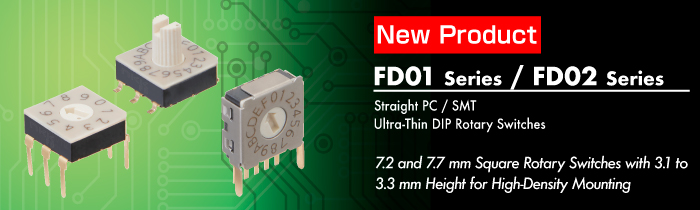

[Series FD01/FD02] Ultra-Thin DIP Rotary Switches
7.2 and 7.7 mm Square Rotary Switches with3.1 to 3.3 mm Height for High-Density Mounting
08.02.2024
Inch Terminal Pitch
For PCBs with inch terminal spacing (FD01)
Heat-Resistant Resin
Heat-resistant resin, suitable for reflow soldering (FD02)
Gull-Wing Configuration
Gull-wing configuration for post-soldering inspections (FD02)
Space-Saving Design
Compact dimensions (7.2 and 7.7 mm square, 3.1 to 3.3 mm height) allow high-density
mounting and provide spacesaving benefits.
Smooth and Crisp Operation
The incorporated metal springs guarantee smooth and crisp operation.
High-Reliability Contacts
Movable contact components distribute the reaction force evenly to ensure consistent connection. High contact-reliability is achieved through gold-plated contacts.
Sale Start Date
February 8, 2024
[Series FD01/FD02] Ultra-Thin DIP Rotary Switches(PDF)
Please note that various specifications listed are subject to change without notice.
For the latest specifications, please check with our representative.
