[Series FF01] Low Profile E-STOP Switch / World’s smallest class with 13.6mm short behind-panel depth
26.11.2019
[Series FF01] Low Profile E-STOP Switch
Sales Start: 2020 Spring
---------------------------------------------------------------------------------------------
World’s smallest class with 13.6mm short behind-panel depth
Sliding latch mechnism(patents pending)
The sliding latch mechanism achieves the shortest body in the industry and maintains the OFF tate even with chatter vibration and shocks.
Two ways of resetting
The switch can be reset by pulling or turning.
Smallest Φ25 button
very compact design of 25mm diameter button allows for tight dimensional applications.
Panel seal structure
Panel sealing mechanism conforming to IP65 of IEC60529 standard.
Applicable standards
・ UL
・ C-UL
・ TÜV (EN60947-5-1, EN60947-5-5)
・ CE
Product lineup

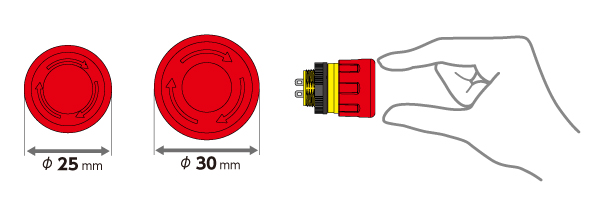

Φ25 button / Φ30 button
Main application
Portable equipment such as small radio wireless remote control (teaching pendants) and handheld items.
Sales Start
2020 Spring
Please note that various specifications listed are subject to change without notice.
For the latest specifications, please check with our representative.
