[FF01 Series] Low Profile E-STOP Switches

Only 13.6mm Behind-Panel Depth - Shortest E-Stop Switch in its Class*

---------------------------------------------------------------------------------------------

Sliding Latch Mechanism

Our original sliding latch mechanism features an inclined switch center section for the latch to maintain secure current contact. When the contact is in ON position, this mechanism permits only forces in the contact connecting direction. When OFF, the mechanism permits only forces in the contact releasing direction. In the event of vibration or impact, the contact will resist movement in the connecting direction,
thereby maintaining the OFF state for added safety. (Patent pending)

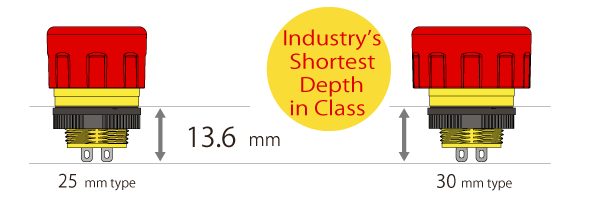

Behind-Panel Depth of 13.6 mm

The sliding latch mechanism achieves the industry’s shortest behind-panel depth in its Class.* The low-profile housing enables high density behind-panel layouts.
* (Industry’s shortest body length including terminals as of November 2019, based on in-house research)

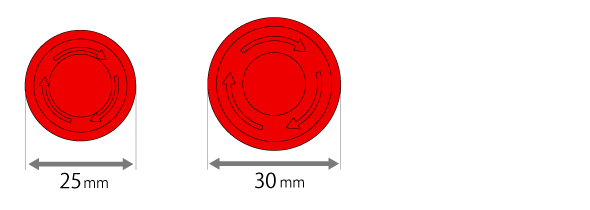

Actuator Size Just 25 mm in Diameter

Measuring only 25 mm in diameter, the small actuator allows installation on a densely embedded panel. Actuators are available in 25 mm or 30 mm diameter to enable low-profile equipment and spacesaving installation.

Two Reset Methods: Pull or Turn

Switch can be reset either by pulling or turning.

Front Panel Seal Structure

The front panel sealing mechanism meets the IEC 60529 IP65 requirements.

Applicable standards

Rating

24 V DC, 0.5 A

Product lineup

Φ25 button

Φ30 button

Applications

Portable equipment and handheld devices, including compact remote controls (teaching pendants)

Sale Start Date

May 12, 2020

PDF

[Series FF01] Low Profile E-STOP Switch / World’s smallest class with 13.6mm short behind-panel depth(PDF)

Instruction Manual

Please note that various specifications listed are subject to change without notice.
For the latest specifications, please check with our representative.
