General Specifications
| Part No. |

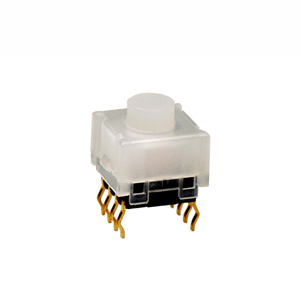

NP0115AG03LD |
| Description |
Subminiature Smooth Actuation Illuminated Pushbutton Switches |
| Name |
ILLUMINATED PUSHBUTTONS |
| Series |
NP01 |
| Poles |
SPST |
| Circuits |
Off-(On) |
| Current Rating |
0.4VA (AC/DC) |
| Rating |
0.4 |
Illumination |
Illuminated |
| Mounting Type |
Through Hole |
| Keywords |
Positive, Distinctive Detent |
| Contact Finish |
Gold Plating |
| Rating (AC) |
28V |
| Rating (DC) |
28V |
| Actuator Type |
Square Cap(Optional Accessory) |
| Termination Style |
Straight PC Terminals |
| Illumination Type |
Super Bright LED |
| Illumination Color |
Amber |
