General Specifications

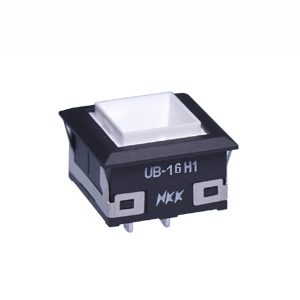

| Part No. | UB16KKG015D |
|---|---|
| Description | Low Profile Illuminated Pushbutton Switches |
| Name | ILLUMINATED PUSHBUTTONS |
| Series | UB |
| Poles | SPDT |
| Circuits | On-On |
| Rating | 0.4 | Illumination | Illuminated |
| Mounting Type | Panel Mount, Snap-In |
| Keywords | Epoxy Sealed Terminals |
| Contact Finish | Gold Plating |
| Actuator Type | Square Cap(Optional Accessory) |
| Panel Cutout Dimensions | 16.2×16.2 |
| Termination Style | Solder Lug |
| Illumination Type | Bright LED |
| Illumination Color | Yellow |
