General Specifications

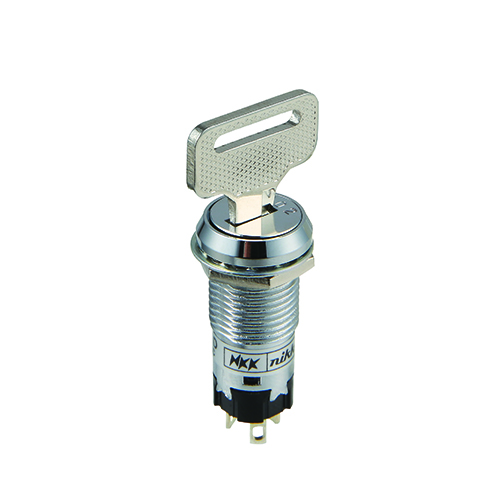

| Part No. | SK12ADW01 |
|---|---|
| Description | Low & Medium Security Keylocks |
| Name | KEYLOCK SWITCHES |
| Series | SK |
| Poles | SPDT |
| Circuits | On-On |
| Current Rating | 3A AC |
| Rating | 3 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Keywords | Epoxy Sealed Terminals |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Contact Timing | Non-Shorting (BBM) |
| No Positions | 2 |
| Angle Throw | 90 |
| Actuator Type | Flat Key |
| Panel Cutout Dimensions | Circular - 12.00mm Dia |
| Termination Style | Solder Lug |
