General Specifications

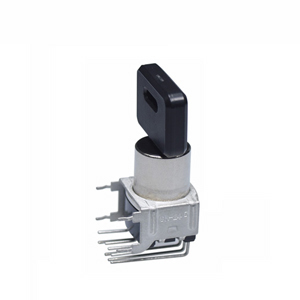

| Part No. | SK24EG30 |
|---|---|
| Description | Process Sealed Keylocks |
| Name | KEYLOCK SWITCHES |
| Series | SK |
| Poles | DP3T |
| Circuits | On-On-On |
| Current Rating | 0.4VA (AC/DC) |
| Rating | 0.4 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Keywords | Beryllium Copper, Process Sealed |
| Contact Finish | Gold Plating |
| Rating (AC) | 28V |
| Rating (DC) | 28V |
| Contact Timing | Non-Shorting (BBM) |
| No Positions | 3 |
| Angle Throw | 45 |
| Actuator Type | Flat Key |
| Termination Style | Right Angle PC Terminals |
