General Specifications

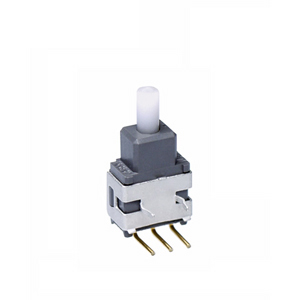

Part No. | AB15AH |
---|---|
Description | Process Sealed Subminiature Pushbutton Switches |
Name | PUSHBUTTON SWITCHES |
Series | AB |
Poles | SPDT |
Circuits | On-(On) |
Current Rating | 0.4VA (AC/DC) |
Rating | 0.4 | Illumination | Non-Illuminated |
Mounting Type | Through Hole |
Keywords | Sealed - Fully |
Contact Finish | Gold Plating |
Rating (AC) | 28V |
Rating (DC) | 28V |
Actuator Type | Round Cap(Optional Accessory) |
Termination Style | Right Angle PC Terminals |
