General Specifications

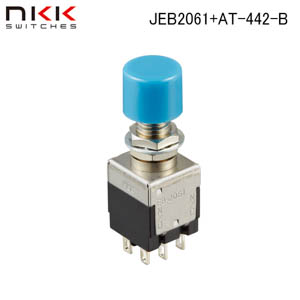

| Part No. | EB2061 |
|---|---|
| Description | Light Touch Miniature Pushbutton Switches |
| Name | PUSHBUTTON SWITCHES |
| Series | EB |
| Poles | DPDT |
| Circuits | On-(On) |
| Current Rating | 3A (AC) |
| Rating | 3 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Actuator Type | Square & Round Cap(Optional Accessory) |
| Panel Cutout Dimensions | 6.5Dia. |
| Termination Style | Solder Lug |
| Standards & Approvals | CSA,UL |
