General Specifications
| Part No. |

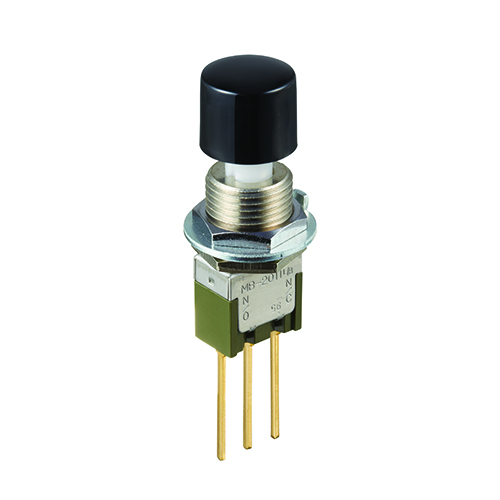

MB2011SB1G06-DA |
| Description |
Miniature Pushbutton Switches |
| Name |
PUSHBUTTON SWITCHES |
| Series |
MB2000 |
| Poles |
SPDT |
| Circuits |
On-(On) |
| Current Rating |
0.4VA (AC/DC) |
| Rating |
0.4 |
Illumination |
Non-Illuminated |
| Mounting Type |
Panel Mount |
| Keywords |
Epoxy Sealed Terminals |
| Rating (AC) |
28V |
| Rating (DC) |
28V |
| Actuator Type |
Round Cap(Optional Accessory) |
| Panel Cutout Dimensions |
12.5Dia. |
| Termination Style |
Wirewrap |
