General Specifications

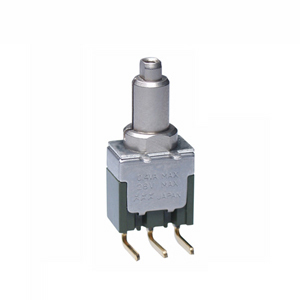

Part No. | MB2011SS2G30 |
---|---|
Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.: MBN15SS2G30 New PN Available to Order : 2023/7/3 |
Name | PUSHBUTTON SWITCHES |
Series | MB2000 |
Poles | SPDT |
Circuits | On-(On) |
Current Rating | 0.4VA (AC/DC) |
Rating | 0.4 | Illumination | Non-Illuminated |
Mounting Type | Through Hole |
Keywords | Epoxy Sealed Terminals |
Rating (AC) | 28V |
Rating (DC) | 28V |
Actuator Type | Round Cap(Optional Accessory) |
Termination Style | Right Angle PC Terminals |
Standards & Approvals | UL |
