Alternate Product
General Specifications

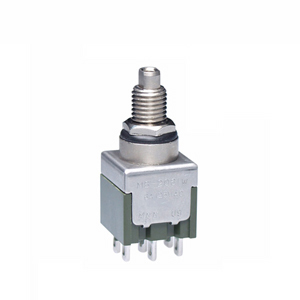

| Part No. | MB2061SD8W01 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.: MBN25SD8W01 New PN Available to Order : 2023/7/3 |
| Name | PUSHBUTTON SWITCHES |
| Series | MB2000 |
| Poles | DPDT |
| Circuits | On-(On) |
| Current Rating | 6A (AC), 3A (DC) |
| Rating | 6 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Keywords | Epoxy Sealed Terminals |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Rating (DC) | 30V |
| Actuator Type | Round Cap(Optional Accessory) |
| Panel Cutout Dimensions | 6.5Dia. |
| Termination Style | Solder Lug |
| Standards & Approvals | UL |
