Alternate Product
General Specifications

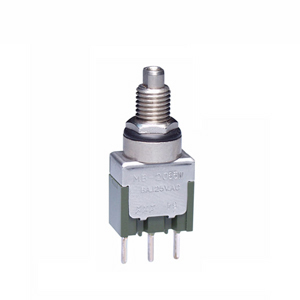

| Part No. | MB2065SD8W03 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.: MBN12SD8W03 New PN Available to Order : 2023/7/3 |
| Name | PUSHBUTTON SWITCHES |
| Series | MB2000 |
| Poles | SPDT |
| Circuits | On-On |
| Current Rating | 6A (AC), 3A (DC) |
| Rating | 6 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Keywords | Epoxy Sealed Terminals |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Rating (DC) | 30V |
| Actuator Type | Round Cap(Optional Accessory) |
| Panel Cutout Dimensions | 6.5Dia. |
| Termination Style | Straight PC Terminals |
| Standards & Approvals | CSA,UL |
