General Specifications

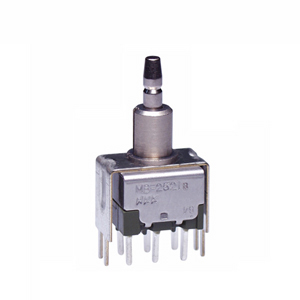

| Part No. | MB2521S2W13 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.:MBNF25S2W13 New PN Available to Order : 2024/01/15 |
| Name | PUSHBUTTON SWITCHES |
| Series | MB2500 |
| Poles | DPDT |
| Circuits | On-(On) |
| Current Rating | 3A (AC) |
| Rating | 6 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Keywords | Epoxy Sealed Terminals |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Actuator Type | Round Cap(Optional Accessory) |
| Termination Style | Straight PC Terminals with Bracket |
| Standards & Approvals | CSA,UL |
