General Specifications

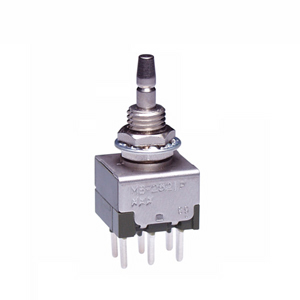

Part No. | MB2521S4W03 |
---|---|
Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.:MBNF25S4W03 New PN Available to Order : 2024/01/15 |
Name | PUSHBUTTON SWITCHES |
Series | MB2500 |
Poles | DPDT |
Circuits | On-(On) |
Current Rating | 3A (AC) |
Rating | 6 | Illumination | Non-Illuminated |
Mounting Type | Panel Mount |
Keywords | Epoxy Sealed Terminals |
Contact Finish | Silver |
Rating (AC) | 125V |
Actuator Type | Round Cap(Optional Accessory) |
Panel Cutout Dimensions | 6.5Dia. |
Termination Style | Straight PC Terminals |
Standards & Approvals | CSA,UL |
