General Specifications

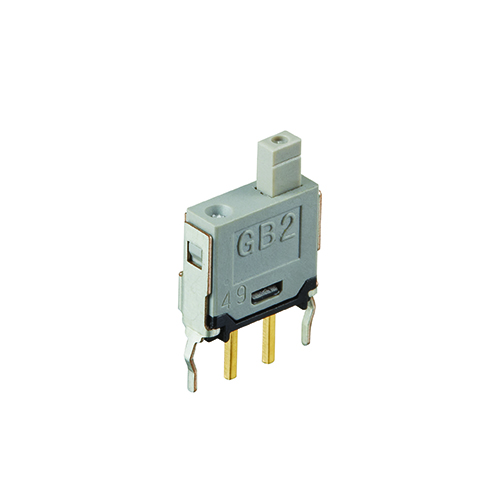

| Part No. | GB215AB |
|---|---|
| Description | Ultra-Thin Pushbutton Switches |
| Name | PUSHBUTTON SWITCHES |
| Series | GB2 |
| Poles | SPST |
| Circuits | Off-(On) |
| Current Rating | 0.4VA (AC/DC) |
| Rating | 0.4 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Contact Finish | Gold Plating |
| Rating (AC) | 28V |
| Rating (DC) | 28V |
| Actuator Type | Rectangular Cap(Optional Accessory) |
| Termination Style | Straight PC Terminals with Bracket |
