General Specifications

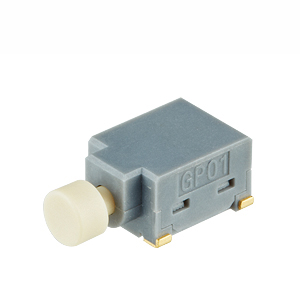

| Part No. | GP0115ACBG30-R |
|---|---|
| Description | Ultra-Miniature Right Angle SMT Pushbuttons |
| Name | PUSHBUTTON SWITCHES |
| Series | GP01 |
| Poles | SPST |
| Circuits | Off-(On) |
| Current Rating | 0.4VA (AC/DC) |
| Rating | 0.4 | Illumination | Non-Illuminated |
| Mounting Type | Surface Mount |
| Keywords | SMT |
| Contact Finish | Gold Plating |
| Rating (AC) | 28V |
| Rating (DC) | 28V |
| Actuator Type | Plunger & Cap |
| Actuator Cap Color | White |
| Termination Style | Right Angle / J Bend Terminals |
