General Specifications
| Part No. | LP0125CCKW01C |
|---|---|

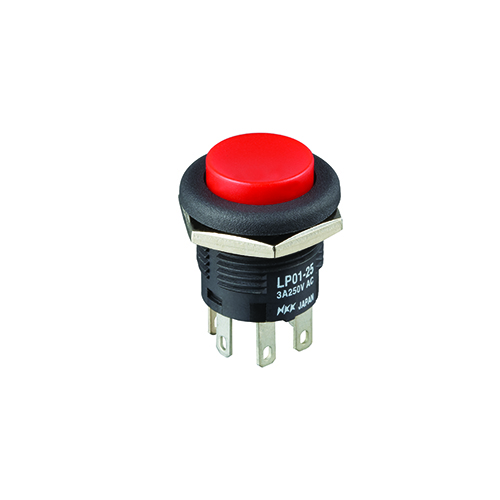

| Description | Short Body Pushbutton Switches |
| Name | PUSHBUTTON SWITCHES |
| Series | LP01 |
| Poles | DPDT |
| Circuits | On-(On) |
| Current Rating | 3A (AC/DC) |
| Rating | 3 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Rating (AC) | 125V |
| Rating (DC) | 30V |
| Actuator Type | Round Button |
| Actuator Cap Color | Red |
| Panel Cutout Dimensions | 16Dia. |
| Termination Style | Quick Connect |
