General Specifications

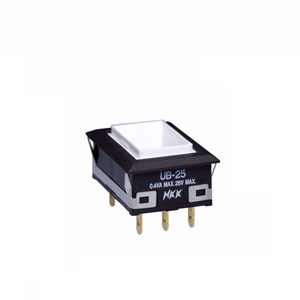

| Part No. | UB25NKG01N |
|---|---|
| Description | |
| Name | PUSHBUTTON SWITCHES |
| Series | UB |
| Poles | DPDT |
| Circuits | On-(On) |
| Current Rating | 0.4VA (AC/DC) |
| Rating | 0.4 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Keywords | Epoxy Sealed Terminals |
| Rating (AC) | 28V |
| Rating (DC) | 28V |
| Actuator Type | Rectangular Cap(Optional Accessory) |
| Termination Style | Solder Lug |
