General Specifications

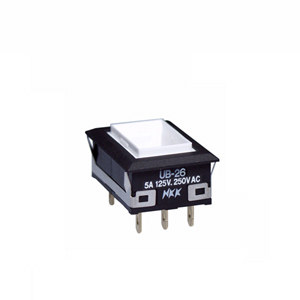

Part No. | UB26NKW01N |
---|---|
Description | |
Name | PUSHBUTTON SWITCHES |
Series | UB |
Poles | DPDT |
Circuits | On-On |
Current Rating | 5A (AC/DC) |
Rating | 5 | Illumination | Non-Illuminated |
Mounting Type | Through Hole |
Keywords | Epoxy Sealed Terminals |
Rating (AC) | 125V |
Rating (DC) | 30V |
Actuator Type | Rectangular Cap(Optional Accessory) |
Termination Style | Solder Lug |
