General Specifications

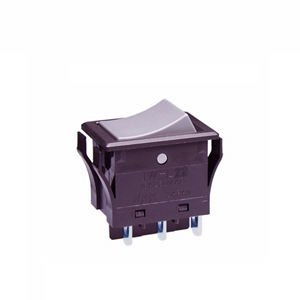

| Part No. | JWL22RHA |
|---|---|
| Description | High Inrush 10 & 16 Amp Rocker Switches |
| Name | ROCKER SWITCHES |
| Series | JW |
| Poles | DPDT |
| Circuits | On-On |
| Current Rating | 16A (AC) |
| Rating | 16 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount, Snap-In |
| Keywords | Epoxy Sealed Terminals, Dust Proof |
| Rating (AC) | 125V |
| Actuator Type | Rocker Cap |
| Actuator Cap Color | Gray |
| Panel Cutout Shape | No Marking |
| Panel Cutout Dimensions | 29.5×20.5 |
| Termination Style | Quick Connect |
| Standards & Approvals | UL,CSA,VDE |
