General Specifications

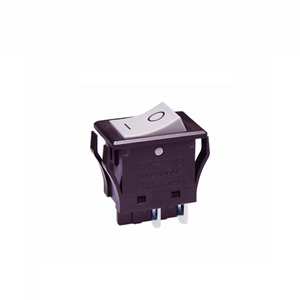

| Part No. | JWM21RH1A |
|---|---|
| Description | High Inrush 10 & 16 Amp Rocker Switches |
| Name | ROCKER SWITCHES |
| Series | JW |
| Poles | DPST |
| Circuits | On-Off |
| Current Rating | 10A (AC) |
| Rating | 10 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount, Snap-In |
| Keywords | Epoxy Sealed Terminals, Dust Proof |
| Rating (AC) | 125V |
| Actuator Type | Rocker Cap |
| Actuator Cap Color | Gray |
| Panel Cutout Shape | O I/Horizontal Orientation |
| Panel Cutout Dimensions | 24×15.4 |
| Termination Style | Quick Connect |
| Standards & Approvals | UL,CSA,VDE |
