General Specifications

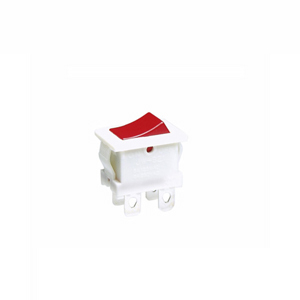

| Part No. | JWS21RCB |
|---|---|
| Description | Internationally Approved Rocker Switches |
| Name | ROCKER SWITCHES |
| Series | JW |
| Poles | DPST |
| Circuits | On-Off |
| Current Rating | 10A (AC) |
| Rating | 10 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount, Snap-In |
| Keywords | Dust Proof |
| Rating (AC) | 125V |
| Actuator Type | Rocker Cap |
| Actuator Cap Color | Red |
| Panel Cutout Shape | No Marking |
| Panel Cutout Dimensions | Rectangular - 19.20mm x 12.90mm |
| Termination Style | Quick Connect |
| Standards & Approvals | UL,C-UL,VDE |
