General Specifications
| Part No. | M2029TNG01 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.:MN29TNG01 New PN Available to Order : 2024/01/15 |

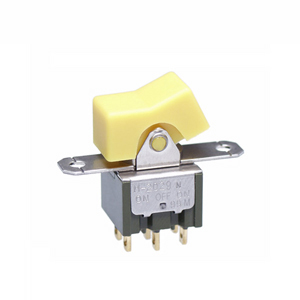

| Name | ROCKER SWITCHES |
| Series | M |
| Poles | DPDT |
| Circuits | On-Off-(On) |
| Current Rating | 0.4VA (AC/DC) |
| Rating | 0.4 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Contact Finish | Gold Plating |
| Rating (AC) | 28V |
| Rating (DC) | 28V |
| Actuator Type | Rocker Cap(Optional Accessory) |
| Panel Cutout Shape | No Marking |
| Termination Style | Solder Lug |
