General Specifications

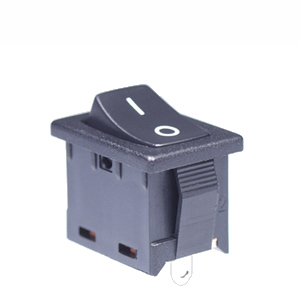

| Part No. | CWSA12AAN2S |
|---|---|
| Description | Miniature Power Rocker Switches |
| Name | ROCKER SWITCHES |
| Series | CW |
| Poles | SPDT |
| Circuits | On-On |
| Current Rating | 6A (AC) |
| Rating | 6 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Keywords | Panel Mount, Snap-In |
| Rating (AC) | 250V |
| Actuator Type | Rocker Cap |
| Actuator Cap Color | Black |
| Panel Cutout Shape | O -/Vertical Orientation |
| Termination Style | Solder Lug |
| Standards & Approvals | UL,C-UL |
