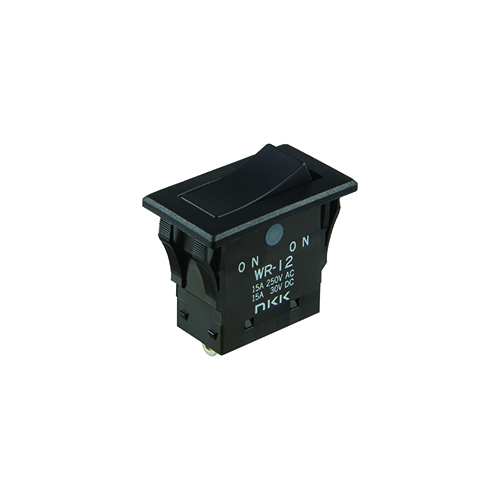

General Specifications
| Part No. | WR12AS |
|---|---|
| Description | Environmentally Sealed Rocker Switches |
| Name | ROCKER SWITCHES |
| Series | WR |
| Poles | SPDT |
| Circuits | On-On |
| Current Rating | 15A (AC/DC) |
| Rating | 15 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount, Snap-In |
| Keywords | Epoxy Sealed Terminals, IP67 - Dust Tight, Waterproof |
| Rating (AC) | 125V |
| Rating (DC) | 30V |
| Actuator Type | Rocker Cap |
| Actuator Cap Color | Balck |
| Panel Cutout Shape | No Marking |
| Panel Cutout Dimensions | 34.2×17.2 |
| Termination Style | Solder Lug |
