General Specifications
| Part No. | NDFR10H |
|---|---|

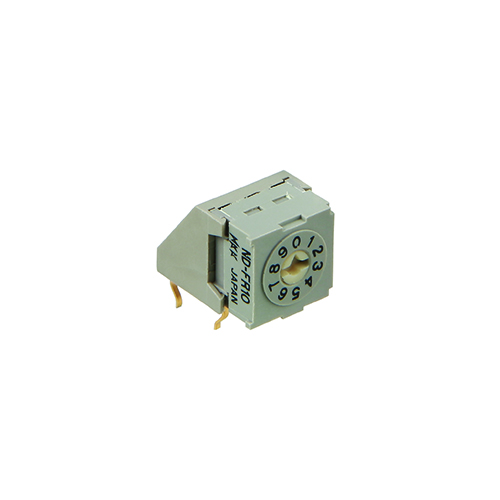

| Description | 8mm Process Sealed DIP Rotary Switches |
| Name | ROTARY SWITCHES |
| Series | ND |
| Poles | BCD |
| Current Rating | 100mA |
| Rating | 0.1 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Keywords | Process Sealed, Real Coded |
| Contact Finish | Gold Plating |
| Voltage Rating | 5VDC |
| No Positions | 10 |
| Actuator Type | Screwdriver |
| Termination Style | Right Angle PC Terminals |
