General Specifications
| Part No. | ND3FR10H |
|---|---|

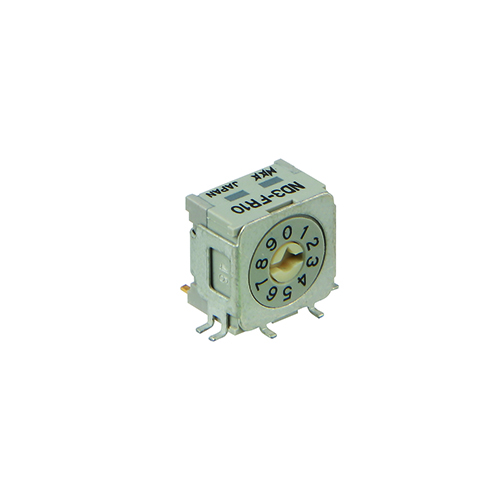

| Description | 8mm Process Sealed SMT DIP Rotary Switches |
| Name | ROTARY SWITCHES |
| Series | ND3 |
| Poles | BCD |
| Current Rating | 100mA |
| Rating | 0.1 | Illumination | Non-Illuminated |
| Mounting Type | Surface Mount |
| Keywords | SMT, Real Coded |
| Contact Finish | Gold Plating |
| Voltage Rating | 5VDC |
| No Positions | 10 |
| Actuator Type | Screwdriver |
| Termination Style | Gull-wing for Right Angle Mount |
