General Specifications

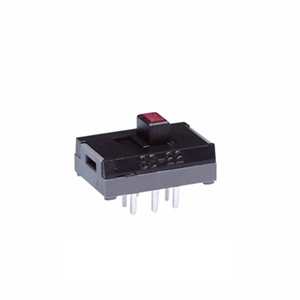

| Part No. | SS22SDP2LC |
|---|---|
| Description | Ultra-Miniature Illuminated Slide Switches |
| Name | ILLUMINATED SLIDE SWITCHES |
| Series | SS |
| Poles | DPDT |
| Circuits | On-On |
| Current Rating | 100mA (DC) |
| Rating | 0.1 | Illumination | Illuminated |
| Mounting Type | Through Hole |
| Contact Finish | Silver Plating |
| Rating (DC) | 30V |
| Contact Timing | Shorting (MBB) |
| Actuator Type | Top Actuated |
| Termination Style | Straight PC Terminals |
| Illumination Type | LED |
| Illumination Color | Red |
