General Specifications

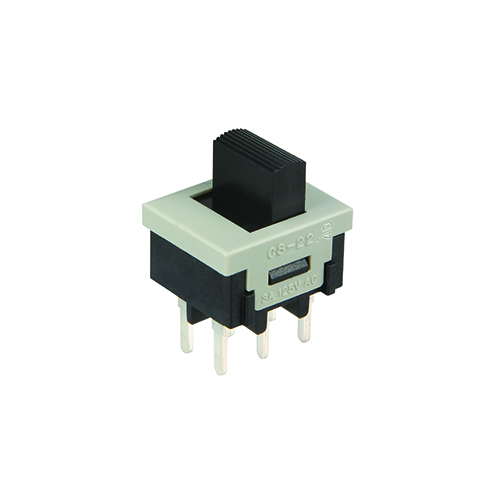

| Part No. | CS22BNW03 |
|---|---|
| Description | Miniature Slide Switches |
| Name | SLIDE SWITCHES |
| Series | CS |
| Poles | DPDT |
| Circuits | On-On |
| Current Rating | 3A AC |
| Rating | 3 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Keywords | Epoxy Sealed Terminals |
| Rating (AC) | 125V |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Type | Wide for Double Pole |
| Termination Style | Straight PC Terminals |
