General Specifications

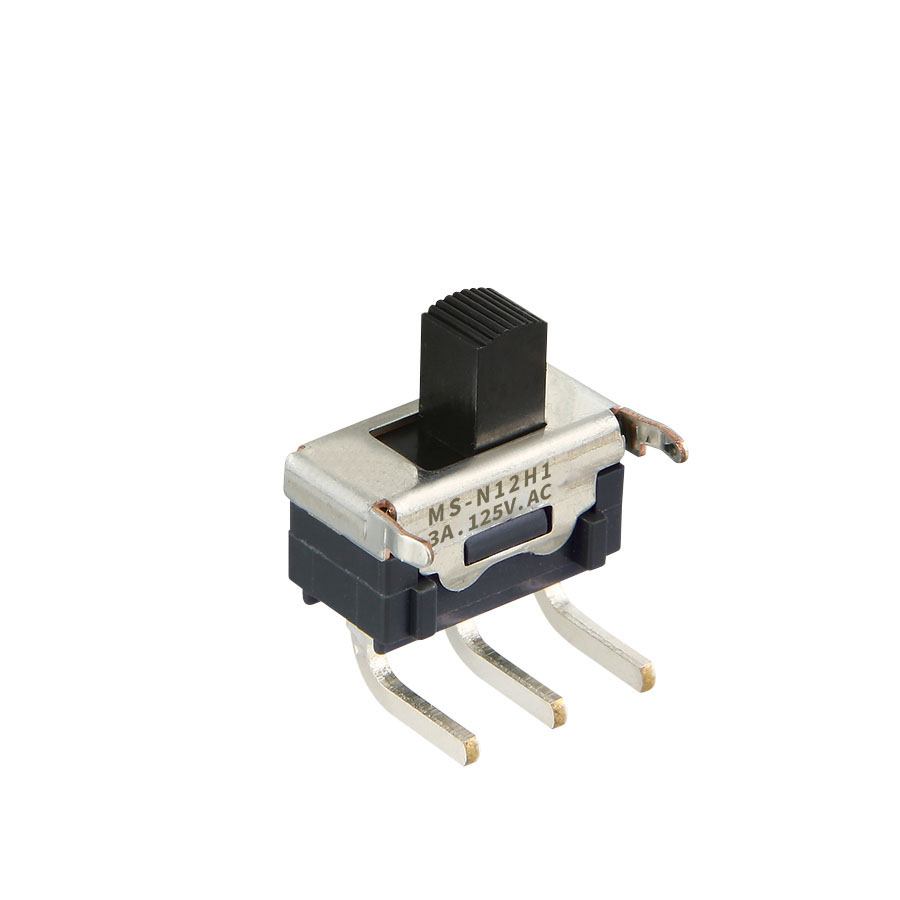

| Part No. | MSN12ASW30 |
|---|---|
| Description | |
| Name | SLIDE SWITCHES |
| Series | MS |
| Poles | SPDT |
| Circuits | On-On |
| Current Rating | 3A (AC) |
| Rating | 3 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Keywords | Epoxy Sealed Terminals |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Type | 3.8mm Wide for Single or Double pole |
| Termination Style | Right Angle PC Terminals |
| Standards & Approvals | UL |
