General Specifications

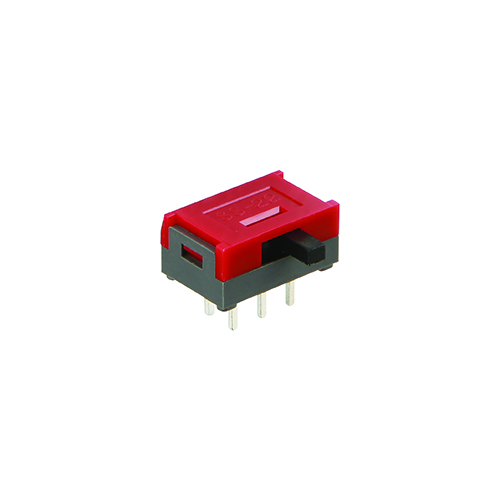

| Part No. | SS22SDH2 |
|---|---|
| Description | Ultraminiature Slide Switches |
| Name | SLIDE SWITCHES |
| Series | SS |
| Poles | DPDT |
| Circuits | On-On |
| Current Rating | 100mA (DC) |
| Rating | 0.1 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Contact Finish | Silver Plating |
| Rating (DC) | 30V |
| Contact Timing | Shorting (MBB) |
| Actuator Type | Side Actuated |
| Termination Style | Right Angle PC Terminals |
