General Specifications

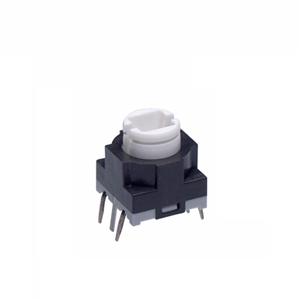

Part No. | JB15HBPC |
---|---|
Description | Illuminated Low Profile Process Sealed Tactile Switches |
Name | ILLUMINATED TACTILE SWITCHES |
Series | JB |
Poles | SPST |
Circuits | Off-(On) |
Current Rating | 125mA(DC) |
Rating | 0.125 | Illumination | Illuminated |
Mounting Type | Through Hole |
Keywords | Process Sealed |
Contact Finish | Silver Plating |
Rating (DC) | 24V |
Contact Rating | 0.125A @ 24VDC |
Actuator Type | Square Cap(Optional Accessory) |
Termination Style | Straight PC Terminals |
Illumination Type | Bright LED |
Illumination Color | Red |
