General Specifications
| Part No. | JB15HFH |
|---|---|

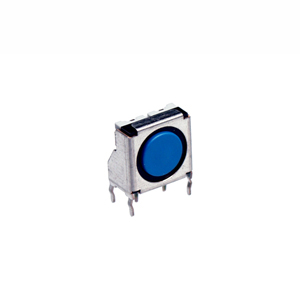

| Description | Low Profile Process Sealed Tactiles |
| Name | TACTILE SWITCHES |
| Series | JB |
| Poles | SPST |
| Circuits | Off-(On) |
| Current Rating | 125mA(DC) | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Keywords | Process Sealed |
| Contact Finish | Silver Plating |
| Rating (DC) | 24V |
| Contact Rating | 0.125A @ 24VDC |
| Actuator Type | Flat Blue Button |
| Termination Style | Right Angle PC Terminals |
