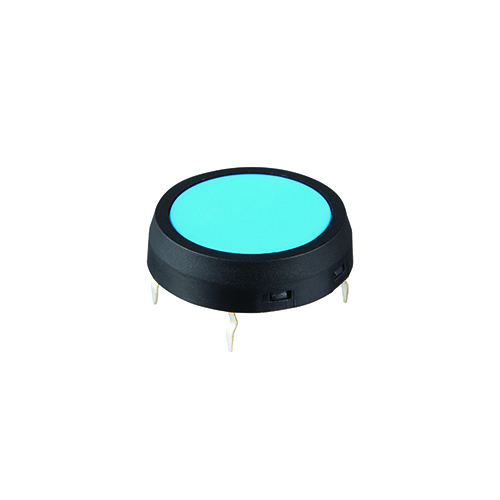

General Specifications
| Part No. | JF15CP2G |
|---|---|
| Description | Ultra-Thin Process Sealed Tactiles |
| Name | TACTILE SWITCHES |
| Series | JF |
| Poles | SPST |
| Circuits | Off-(On) |
| Current Rating | 50mA(DC) | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Keywords | Process Sealed |
| Contact Finish | Silver Plating |
| Rating (DC) | 24V |
| Actuator Type | Round Button |
| Termination Style | Straight PC Terminals |
