General Specifications

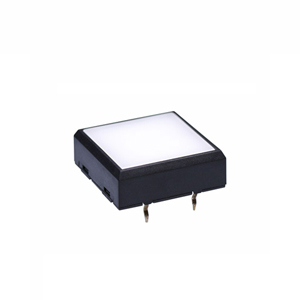

| Part No. | JL15SKSBCP2 |
|---|---|
| Description | Illuminated Ultra-Thin Tactile Switches |
| Name | ILLUMINATED TACTILE SWITCHES |
| Series | JL |
| Poles | SPST |
| Circuits | Off-(On) |
| Current Rating | 50mA(DC) |
| Rating | 0.05 | Illumination | Illuminated |
| Mounting Type | Through Hole |
| Contact Finish | Silver Plating |
| Rating (DC) | 24V |
| Contact Rating | 0.05A @ 24VDC |
| Actuator Type | Square Button |
| Actuator Cap Color | White |
| Termination Style | Straight PC Terminals |
| Illumination Type | Bright LED |
| Illumination Color | Red |
