General Specifications

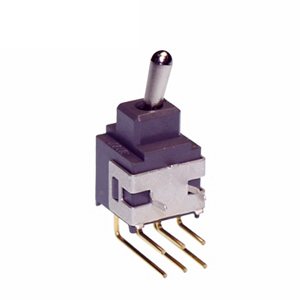

| Part No. | A29JH |
|---|---|
| Description | Process Sealed Subminiature Toggle Switches |
| Name | TOGGLE SWITCHES |
| Series | A |
| Poles | DPDT |
| Circuits | On-Off-(On) |
| Current Rating | 0.4VA (AC/DC) |
| Rating | 0.4 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Keywords | Process Sealed |
| Rating (AC) | 28V |
| Rating (DC) | 28V |
| Actuator Type | 6.3mm Bat |
| Termination Style | Right Angle PC Terminals |
