General Specifications

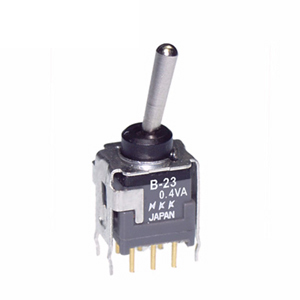

| Part No. | B23AB |
|---|---|
| Description | Process Sealed Subminiature Antistatic Toggle Switches |
| Name | TOGGLE SWITCHES |
| Series | B |
| Poles | DPDT |
| Circuits | On-Off-On |
| Current Rating | 0.4VA (AC/DC) |
| Rating | 0.4 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Keywords | Epoxy Sealed Terminals |
| Rating (AC) | 28V |
| Rating (DC) | 28V |
| Actuator Type | 10mm bat |
| Termination Style | Straight PC Terminals with Bracket |
