General Specifications
| Part No. | D22023B |
|---|---|

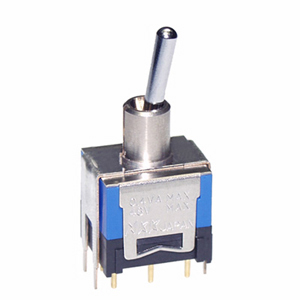

| Description | PCB Mount Miniature Toggle Switches |
| Name | TOGGLE SWITCHES |
| Series | D2 |
| Poles | DPDT |
| Circuits | On-Off-On |
| Current Rating | 0.4VA (AC/DC) |
| Rating | 0.4 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Rating (AC) | 48V |
| Rating (DC) | 48V |
| Actuator Type | 10.5mm Bat Lever |
| Termination Style | Straight PC Terminals with Bracket |
