Alternate Product
General Specifications

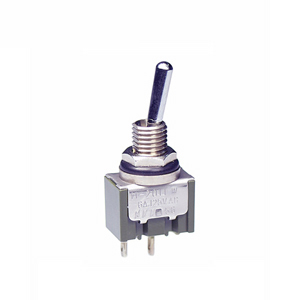

| Part No. | M2011SD8W01 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.: MN11SD8W01 New PN Available to Order : 2023/7/3 |
| Name | TOGGLE SWITCHES |
| Series | M |
| Poles | SPST |
| Circuits | On-Off |
| Current Rating | 6A (AC), 4A (DC) |
| Rating | 6 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Rating (DC) | 30V |
| Actuator Type | 10.5mm Bat |
| Panel Cutout Dimensions | 6.5Dia. |
| Termination Style | Solder Lug |
| Standards & Approvals | CSA,UL |
