General Specifications

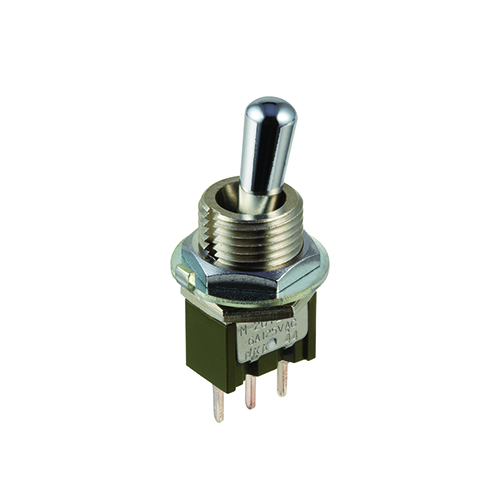

| Part No. | M2012BB1W03 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.:MN12BB1W03 New PN Available to Order : 2024/01/15 |
| Name | TOGGLE SWITCHES |
| Series | M |
| Poles | SPDT |
| Circuits | On-On |
| Current Rating | 6A (AC), 4A (DC) |
| Rating | 6 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Rating (DC) | 30V |
| Actuator Type | 11.5mm Large Bat |
| Panel Cutout Dimensions | 6.5Dia. |
| Termination Style | Straight PC Terminals |
| Standards & Approvals | CSA,UL |
