General Specifications
| Part No. | M2021ES4G01 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.:MN21ES4G01 New PN Available to Order : 2024/01/15 |

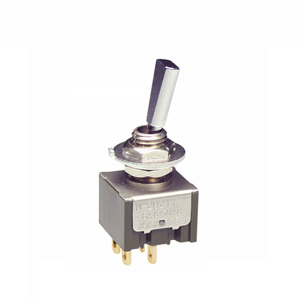

| Name | TOGGLE SWITCHES |
| Series | M |
| Poles | DPST |
| Circuits | On-Off |
| Current Rating | 0.4VA (AC/DC) |
| Rating | 0.4 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Contact Finish | Gold Plating |
| Rating (AC) | 28V |
| Rating (DC) | 28V |
| Actuator Type | 11.4mm Flatted |
| Panel Cutout Dimensions | 6.5Dia. |
| Termination Style | Solder Lug |
