General Specifications

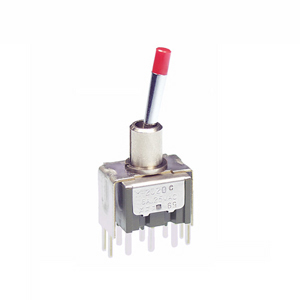

| Part No. | M2024CS2W13 |
|---|---|
| Description | Miniature Toggle Switches |
| Name | TOGGLE SWITCHES |
| Series | M |
| Poles | SP3T |
| Circuits | On-On-On |
| Current Rating | 6A (AC), 4A (DC) |
| Rating | 6 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Rating (DC) | 30V |
| Actuator Type | 14.5mm Color Tipped Cone |
| Termination Style | Straight PC Terminals with Bracket |
| Standards & Approvals | CSA,UL |
