General Specifications

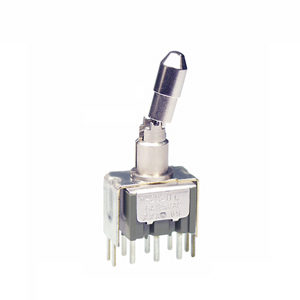

| Part No. | M2024LL2W13 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.:MN24LL2W13 New PN Available to Order : 2024/01/15 |
| Name | TOGGLE SWITCHES |
| Series | M |
| Poles | SP3T |
| Circuits | On-On-On |
| Current Rating | 6A (AC), 4A (DC) |
| Rating | 6 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Rating (DC) | 30V |
| Actuator Type | 5.1mm Dia. Locking Lever |
| Termination Style | Straight PC Terminals with Bracket |
| Standards & Approvals | CSA,UL |
