General Specifications

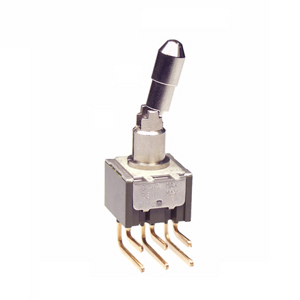

| Part No. | M2025LL2G30 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.:MN25LL2G30 New PN Available to Order : 2024/01/15 |
| Name | TOGGLE SWITCHES |
| Series | M |
| Poles | DPDT |
| Circuits | On-(On) |
| Current Rating | 0.4VA (AC/DC) |
| Rating | 0.4 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Contact Finish | Gold Plating |
| Rating (AC) | 28V |
| Rating (DC) | 28V |
| Actuator Type | 5.1mm Dia. Locking Lever |
| Termination Style | Right Angle PC Terminals |
