General Specifications
| Part No. |

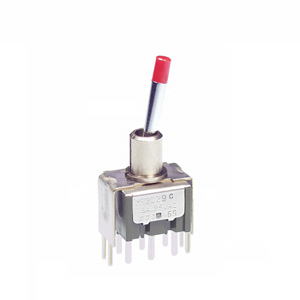

M2029CS2W13 |
| Description |
Miniature Toggle Switches |
| Name |
TOGGLE SWITCHES |
| Series |
M |
| Poles |
DPDT |
| Circuits |
On-Off-(On) |
| Current Rating |
6A (AC), 4A (DC) |
| Rating |
6 |
Illumination |
Non-Illuminated |
| Mounting Type |
Through Hole |
| Contact Finish |
Silver |
| Rating (AC) |
125V |
| Rating (DC) |
30V |
| Actuator Type |
14.5mm Color Tipped Cone |
| Termination Style |
Straight PC Terminals with Bracket |
| Standards & Approvals |
CSA,UL |
