General Specifications

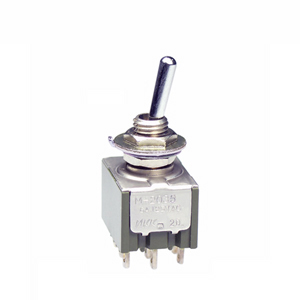

| Part No. | M2035SS4W01 |
|---|---|
| Description | Miniature Toggle Switches |
| Name | TOGGLE SWITCHES |
| Series | M |
| Poles | 3PDT |
| Circuits | On-(On) |
| Current Rating | 6A (AC), 4A (DC) |
| Rating | 6 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Rating (DC) | 30V |
| Actuator Type | 10.5mm Bat |
| Panel Cutout Dimensions | 6.5Dia. |
| Termination Style | Solder Lug |
| Standards & Approvals | UL |
