General Specifications

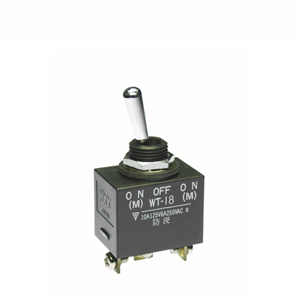

| Part No. | WT18T |
|---|---|
| Description | Environmentally Sealed Toggle Switches |
| Name | TOGGLE SWITCHES |
| Series | WT |
| Poles | SPDT |
| Circuits | (On)-Off-(On) |
| Current Rating | 10A (AC) |
| Rating | 10 | Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Keywords | Epoxy Sealed Terminals, IP67 - Dust Tight, Waterproof |
| Rating (AC) | 125V |
| Actuator Type | Standard Round |
| Panel Cutout Dimensions | 12.5Dia. |
| Termination Style | Screw Terminal |
